Nanjing Rainbow Machinery Co.,Ltd.

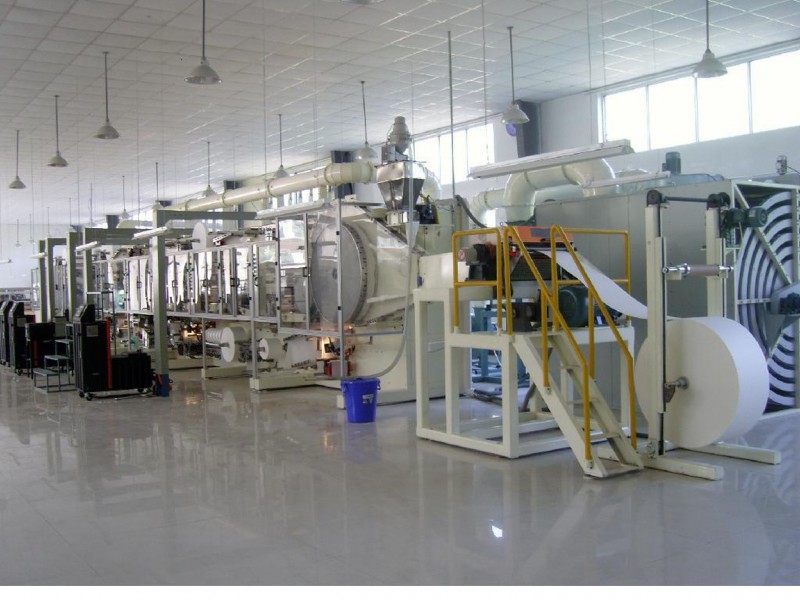

baby diaper machine

Main functions and features:

It have collected advantage from domestic and abroad in same line the technological process is one straight line production, quick, convenient, and easy management.
The function is complete, it can produce diaper of economic type and high quality, it can produce three types of products(L,M,S),if you change a few small parts, it is very easy to do so. The designing is advanced, the power and noise are lower.
The shape is graceful.
The main machine adopts fiber aggregate device to apply fiber at a contend amount .
The thickness can be adjusted and the waste can be recycled. Wrap fluff pulp with water-absorbing paper press model with net, the cotton core will not be broken and shifted. Material for stereo shield is shaped by cutting and hot Press on the equipment.
It adheres to elastic ribbon to be formed for side leakage proof. It with frontal waist tape.
After the arc on side is shaped, it will fold the wings and make a three-folding in lengthwise way, The diaper pads will be put out in order and easy for packing.
SAP  may be applied at a contend amount and in the designed locations or may be applied in a mixing way.
The key parts of equipment are made of special material, the main standard electrical appliances are famous-brand products of domestic and abroad. The lifetime of the equipment is guaranteed.

Parameters:

1. Type: TZH-NKA 150

2. production output:80-150 pieces/min

3. Installed capacity:65KW(380V 50Hz)

4. Overall dimension:15m*1.9m*2.7m(length*width*height)

5. Total weight:17T

6.Equipment specification:(length*width) S:380 x 270mm    M:450 x 310mm   L:515 x 330mm  XL:540 x 340 mm
