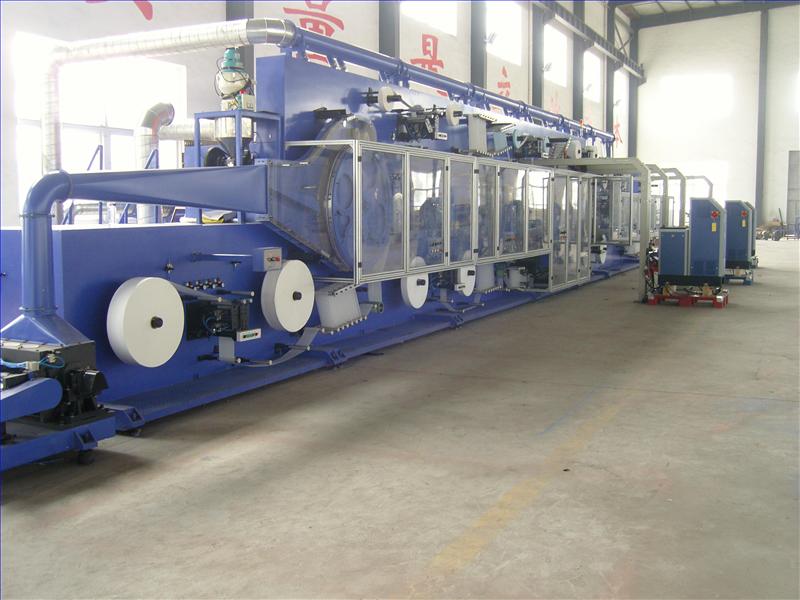

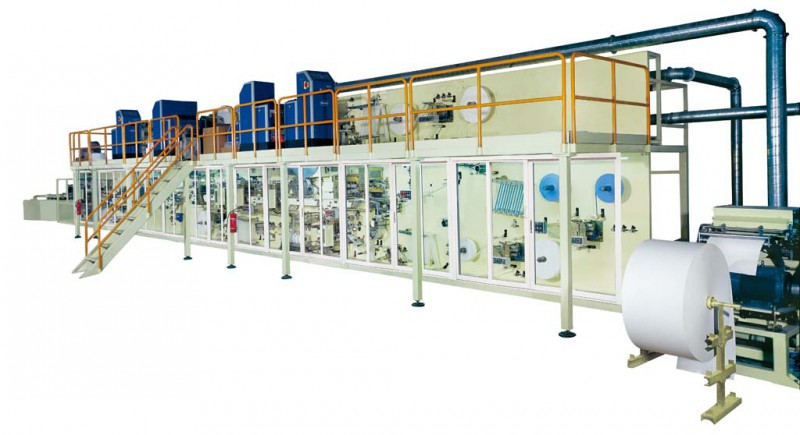

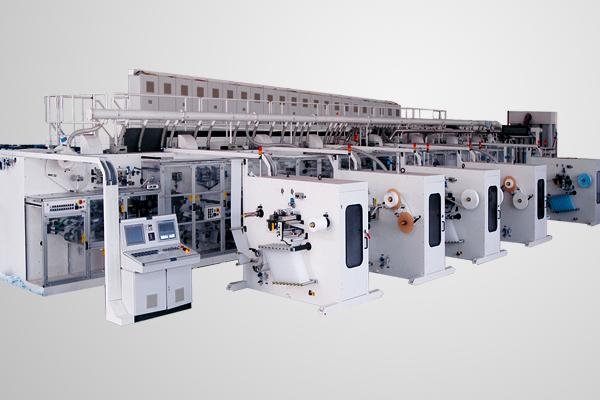

Full Servo Sanitary Napkin Machine
I. Main features:
1. Touch screen for man-machine conversation;
2. Servo motor drive & PLC control;
3. Cell mill;
4. Drum forming;
5. SAP applicator;
6. ADL short cut unit;
7. Servo motor drive unwinder, tension control and splicing for raw material;
8. Current conducting ring is adopted for the heating rotary bodies;
9. Phase can be adjusted during operation;
10.Product auto counting and stacking.
II. Main techinical parameter:
1. Supply: 3 phase, 380V, 50Hz;
2. Power: 330Kw;
3. Wastage: 3%;
4. Production speed: 1200pcs/min;
5. Outside dimension(m): 30x8x4.5 (LxWxH) (Stacker excluded).
III. Main structural device:
1. Cell mill;
2. Suction fan;
3. Drum forming unit;
4. SAP applicator;
5. Absorbent layer compacting unit;
6. Side gather embossing unit;
7. ADL splitting and dotting unit;
8. Channel embossing unit;
9. Embossing unit;
10. Release paper splitting unit;
11. Contour cutting unit;
12. Rotating and Wing folding unit;
13. 90 degree revolving unit;
14. Sachet wrapping unit;
15. Adhesive tape splitting unit;
16. Thermo sealing and cutting unit;
17. Waste rejecting unit;
18. Stacker;
19. Safety door.
