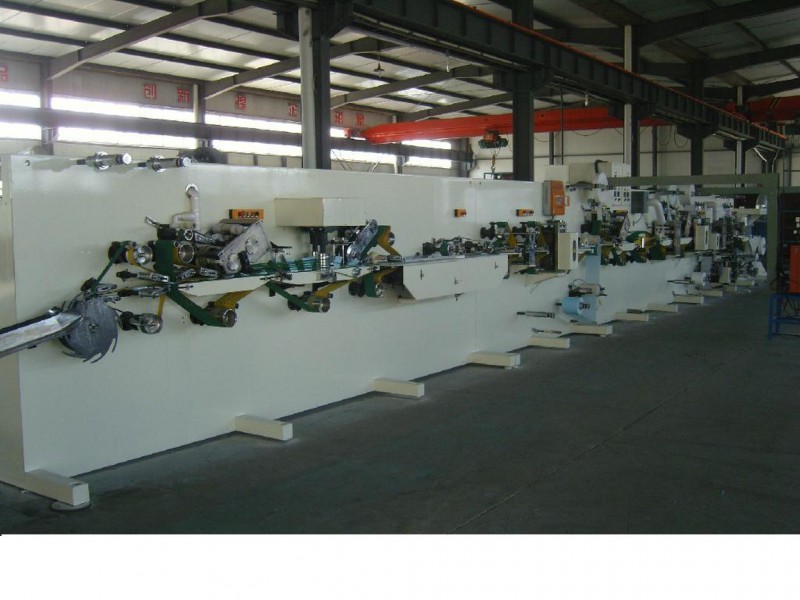

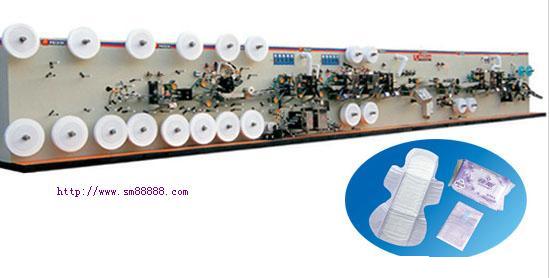

Multiple-Function Machine For Sanitary Napkin
Performances and features:
1.Independent packing with three folding: “blank piece? combine wings with paper change direction 90 degrees transmit forward in equidistance wrap in three folding with sanitary napkin tape packing film sealed with easily-torn tape seal and cut in small package form individually-packed finished products output in line
2. SAP resin is added to the cotton core and the napkins are of better water absorption and more security.
3. The equipment can produce napkins of three-piece type, leaking proof, ultra-thin (as thin as silk ) and medicinal type and regular type. During the producing process, it is not necessary to replace any part of equipment.
4. Each part of the equipment is mounted with differential device for phase correction during operation.
5.Driving system consists of synchronous belt ( Optibelt, made in Germany) and round arc gear combined with gear case; The key parts adopt NSK bearing (made in Japan) for smooth transmission, prolonging the lifetime of the machine. The adoption of turning gear wheel changes the direction 90 degrees, making the production speedy, simple and credible.
6:After revolving the direction, the products are corrected and conveyed in equidistance. The packing of product is trim.
7. The key parts of equipment are driven by cylinder and separate automatically when the machine stops. The rate of the products which are up to standard is guaranteed.
Main technical parameters:
1.Type: 260
2. Overall dimensions:18.5m*2.5m*2.8m (length*width*height)
3. Working space:20m*4m*4m(length*width*height)
4.Total weight:16T
5. Power supply:380v50HZ
6.Installation capacity:52.5KW
7. Air consumption:1000 Liter/min, at morphemic:pressure:6 -8 Bars.
8. Designing output:260piece/min
9. Economic output:200 piece/min
10. Product specification:225mm-340mm
