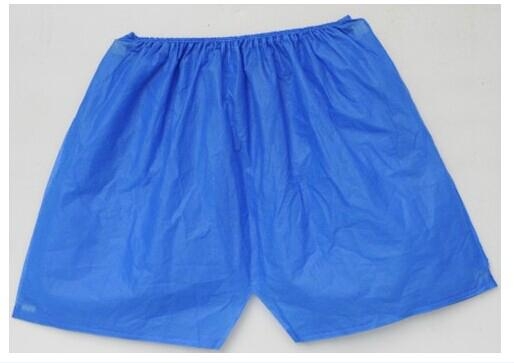

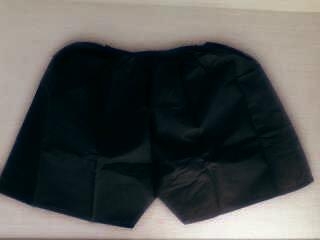

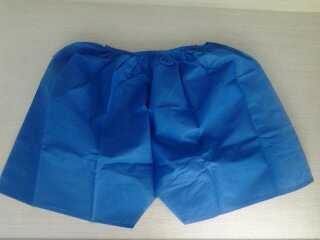

Non woven shorts pants machine - beach pants equipment
Technical parameters
1, type: ZD-600
2, material: non-woven
3, the maximum discharge width: 650mm
4, pants producing speed: 20 / minute (depending on the specifications of the pants and the pants shape)
5, the biggest pants width: 600mm
6, the maximum pants length : 850mm
7, the maximum thickness of film: 80g
8, the total power: 8KW
9, weight: 5T
10, Machine size: 5000mmX1500mmX1500mm
Product de
1, the head of ultrasonic with four, Athena Changzhou brand (quality of the leading domestic), the machine adopts six ultrasonic
2, the head of ultrasonic is power, the different length of the pants can be turned on or off several ultrasonic, conducive to the maintenance and power ultrasonic

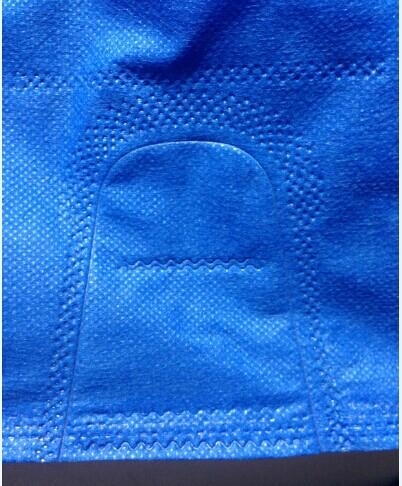

The ultrasonic welding part
3, low noise, no damage to the operator body
4, machine installation's length is 5.5 meters, 1x40HQ container can load one line.
5, the machine to the customer plant, simply connect the good machine, 1-2 hours can be finished bag, time is fast, less waste, high efficiency
6, the machine only needs one person, threading mode is simple, intuitive, easy to grasp, the function switching required operation is also very simple, less waste, high efficiency.
Machine configuration
1, the main machine with frequency conversion
2, computer control with two stepper drive
3, arbitrary fixed length, step photoelectric tracking, accurate, stable
4, intelligent automatic stop, automatic synchronization punch
5, automatic counting and counting alarm can be set
6, discharge with flatulence axis
7, discharge with rectifying device
8 fold coordination, rectification with web guard.
9, discharge with tachometer display
10, adjusting swing rod equipped with pneumatic tension control
11, the head of machine with four ultrasonic
12, End embossing with two ultrasonic
13, printed cloth with electric eye tracking, intelligent automatic stop
\
