Shandong Kaitai Cast Steel Shot

                                                           Shandong kaitai Industrial Technologies Co.,Ltd

Product Description:

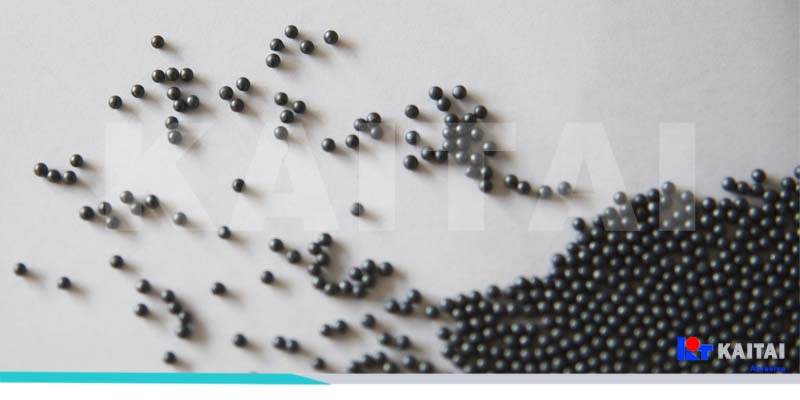

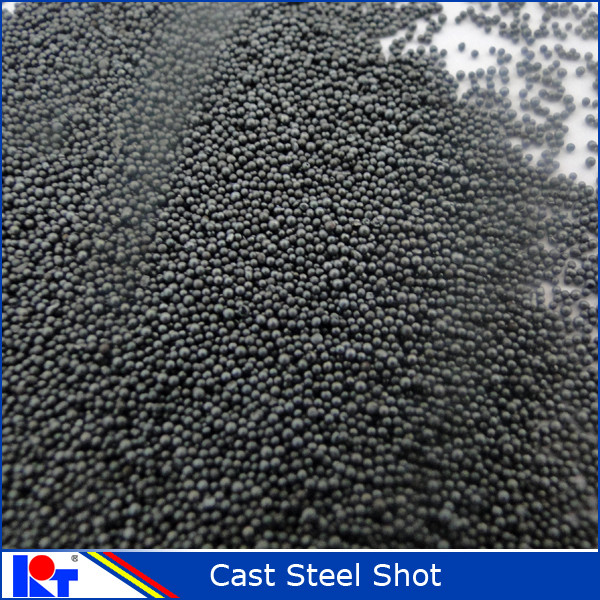

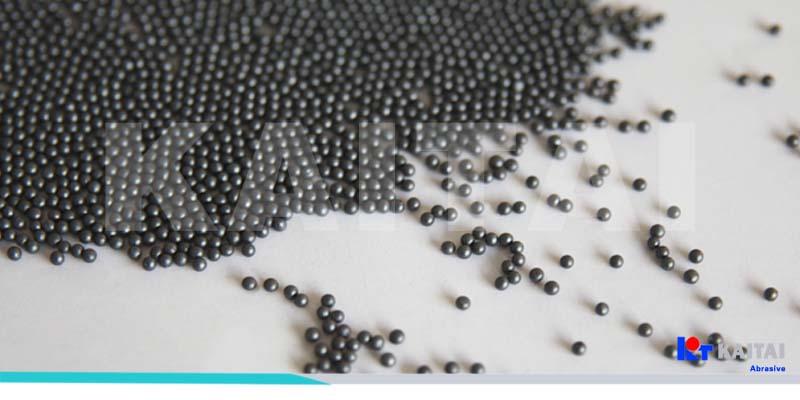

Cast steel shot :

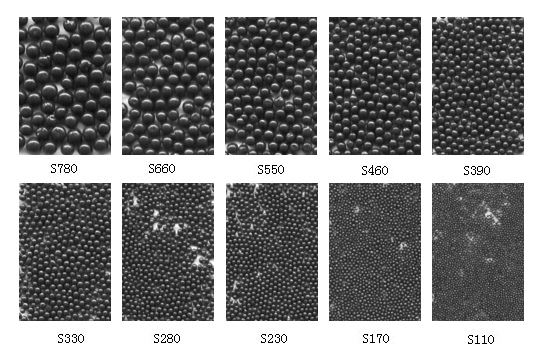

Model: S780/SS2.5 、 S660/SS2.0 、 S550/SS1.7 、S460/SS1.4 、S390/SS1.2 、S330/SS1.0 、S280/SS0.8 、S230/SS0.6 、 S170/SS0.5 S140/SS0.4 、 S110/SS0.3 、 S70/SS0.2

Operative Standards:

                  The cast steel shot is an effective abrasive media , and it is fabricated in accordance with the following standards.

GB/T18838.3-2008 Steel Shot and Steel Grit; SFSA20-66Cast Steel Abrasive; SAE J827 ast Steel Shot;  SAE J1993High Carbon Steel Grit;  YB/T5149-1993 Cast Steel Shot; YB/T5150-1993Cast Steel Grit; ISO11124-3High Carbon Cast Steel Shot and Grit; JIS G5903 Cast Steel Shot and Grit ; SAE J441 Steel Cut Wire Shot.

The Major Technological Index:

Products Steel Shot Chemical Composition C 0.70～1.20% Mn 0.35～1.20% Si 0.40～1.20% S ≤0.05% P ≤0.05% Microhardness Normal:40～50HRC (377～509HV) Special:52～56HRC (543～620HV) Special:56～60HRC (620～713HV) Hardness Deviation Max Deviation ±3.0HRC Microstructure Tempered Martensite or Sorbite Density 7.2g/cm3

Application Range :

This metal abrasive is developed for different purposes as listed below.

1. Surface cleaning: Castings, forgings, die-castings, steel plates , H-shape steel, structural steel;

2. Derusting and descaling : Casting, forgings, steel plates, H-shape steel, structural steel;

3. Surface strengthening: Gears, heat-treated parts;

4. Shot blasting: Steel plate, steel profiles;

5. Shot peening: Steel plate, steel profiles;

6. Desanding: Steel plate, steel profiles;

7. Pretreatment before painting: Steel plates, Steel profiles, structural steel.

Applicable Equipemt

As a kindof metallic blast cleaning abrasive, our cast steel shot is applicable for a wide range of shot blasting machine including barrel type, spinner hanger type, rubber belt type, turntable type, rotary table type ,etc. It also works well with shot peening machine, steel plate pretreatment line and so on.

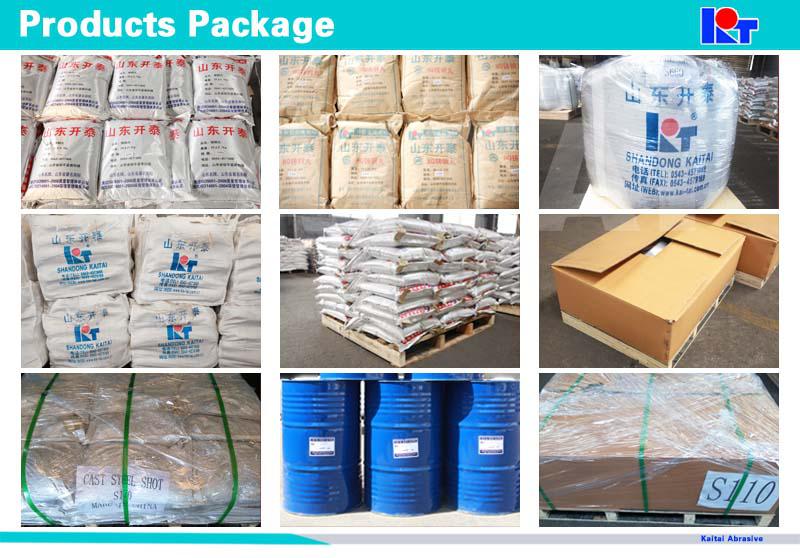

Packaging

Our cast steel shot is packaged in woven bags, paper bags, flexible freight bags, barrels or pallets.


Packing Types:

General Packaging:

25kg per bag, 40 bags in one pallet

25kg per bag,40 bags in one jumbo bag

25kg per paper bag,40 bags in one plywood pallet

One ton a bulk bags

According to customer requirements

Shipping:Container transport

Certifications:

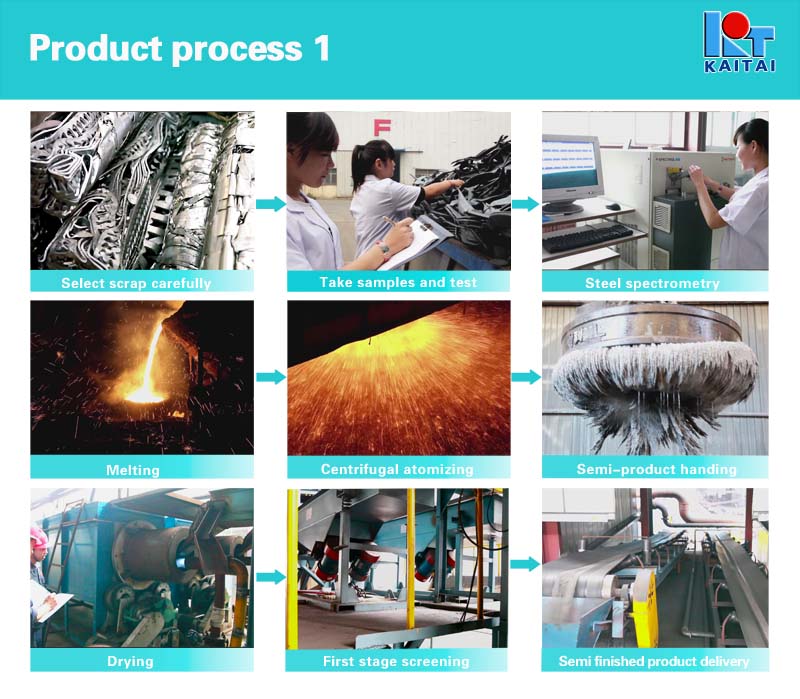

Production Flow:

 With strong techical force ,advanced equipemt like intermediate frequency induction furnace, centrifugal atomizer,second quenching ,tempering ,spiralizing,package and so on, the company could produce high strength , strong durability cast steel

shot and cast steel grit.

The production technology and equipment gains progress in Science and Technology of Shandong Province Scond Prize
and Progress in Science and Technology of Binzhou City First Prize.

International Commumication:
