1/5
Kaitai Stainless Steel Shot 0.2mm~1.2mm图1Kaitai Stainless Steel Shot 0.2mm~1.2mm图2Kaitai Stainless Steel Shot 0.2mm~1.2mm图3

Kaitai Stainless Steel Shot 0.2mm~1.2mm

2015-07-18 14:112020询价
价格 面议
发货 China(Mainland)付款后3天内
品牌 Shandong Kaitai
Model 0.2mm 0.3mm 0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm
Chemical Composition 304 Austenite Type:C<0.25%,Cr=16~18%, Ni=6~10%, Si<1%,Mn<2%
Durability 6500 Times
库存 12000TON起订1TON
产品详情

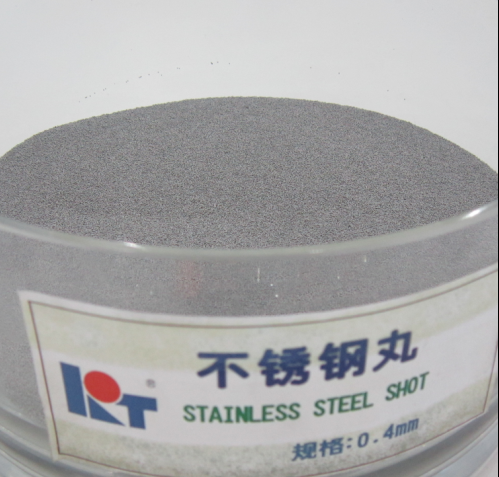

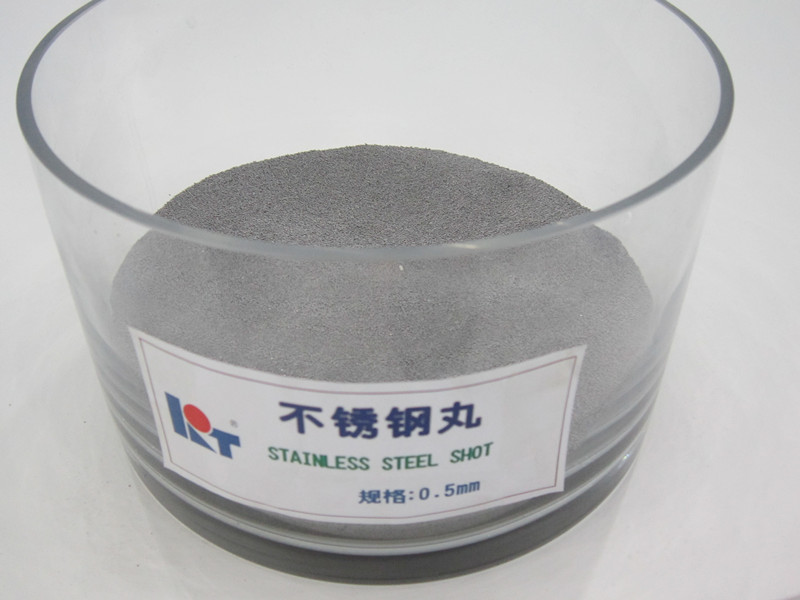

                                               Kaitai Stainless Steel Shot 0.2mm~1.2mm
                                                                             Shandong Kaitai Industrial Technology CO., Ltd




Stainless Steel Shot:

Model:0.2mm 0.3mm 0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm
样板
(XJ3(X~GPG(IC(3F~[FQ4_L
IOS CNAS IAF SAE标志
修改不锈钢丸0.5


Operative Standards:
We strictly abide by standard of Japan JIS to manufacture.


The Major Technological Index:



Products

Steel Shot

Chemical Composition

C

0.70~1.20%

Mn

0.35~1.20%

Si

0.40~1.20%

S

≤0.05%

P

≤0.05%

Microhardness

Normal:40~50HRC (377~509HV)
Special:52~56HRC (543~620HV)
Special:56~60HRC (620~713HV)

Hardness Deviation

Max Deviation ±3.0HRC

Microstructure

Tempered Martensite or Sorbite

Density

7.2g/cm3


Application Range :
This metal abrasive is developed for different purposes as listed below.
1. Surface cleaning: Castings, forgings, die-castings, steel plates , H-shape steel, structural steel;
2. Derusting and descaling : Casting, forgings, steel plates, H-shape steel, structural steel;
3. Surface strengthening: Gears, heat-treated parts;
4. Shot blasting: Steel plate, steel profiles;
5. Shot peening: Steel plate, steel profiles;
6. Desanding: Steel plate, steel profiles;
7. Pretreatment before painting: Steel plates, Steel profiles, structural steel.
运用1

Applicable Equipemt :
As a kindof metallic blast cleaning abrasive, our cast steel shot is applicable for a wide range of
shot blasting machine including barrel type, spinner hanger type, rubber belt type, turntable type,
rotary table type ,etc. It also works well with shot peening machine, steel plate pretreatment line
and so on.

Packaging :
General Packaging:

25kg per bag, 40 bags in one pallet

25kg per bag,40 bags in one jumbo bag

25kg per paper bag,40 bags in one plywood pallet

One ton a bulk bags

According to customer requirements
Shipping:Container transport

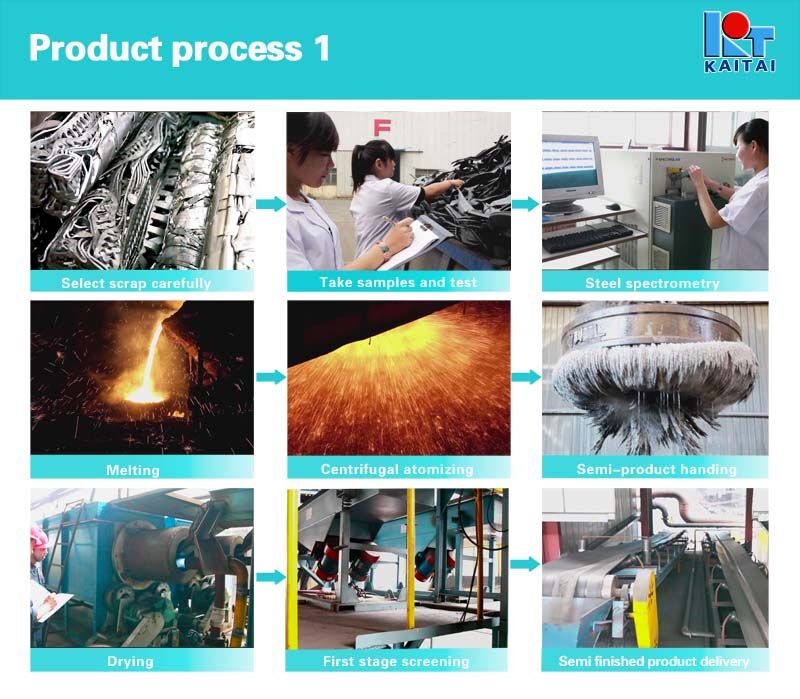

生产流程
